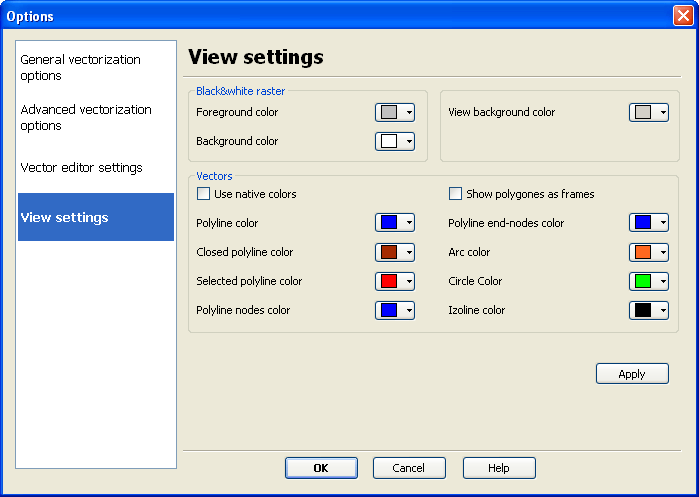

View settings


View settings can be customized through the Vector|Options menu.

View options

Black-and-white raster

This option affect only on black-and-white (monochrome) image visualzation

Window background color

Sets the backgound color for image view windows.

Vectors

Use native colors - all vector objects visualized in source raster colors.

Show polygones as frames - polygones not filled (transparent).

Polyline color - color of polylines when Use native colors option is off.

Closed polyline color - color of closed polylines when Use native colors option is off.

Selected polyline color - color for polyline highlite when it selected for edit operations.

Polyline nodes color - color for polyline nodes exclude the first and the last.

Polyline end nodes color - color for first and last polyline nodes.

Arc color - color of arcs when Use native colors option is off.

Circle color - color of circles when Use native colors option is off.

Izoline color - color of polylines with height (Z-coordinate) attribute when Use native colors option is off.
